[richiemcilroy]

Adds Voice EQ to the desktop editor. It sets the microphone's tone clip by clip, non-destructively. It has five presets, a draggable five-band curve (low cut, low shelf, two bells, high shelf) and optional De-click for mouth clicks and crackle. Playback and export run the same renderer, so what you hear while editing is what exports.

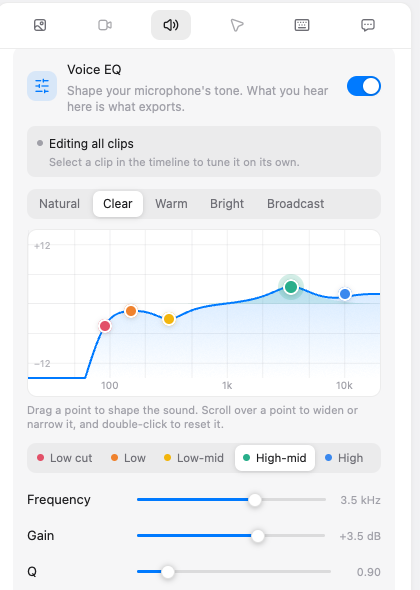

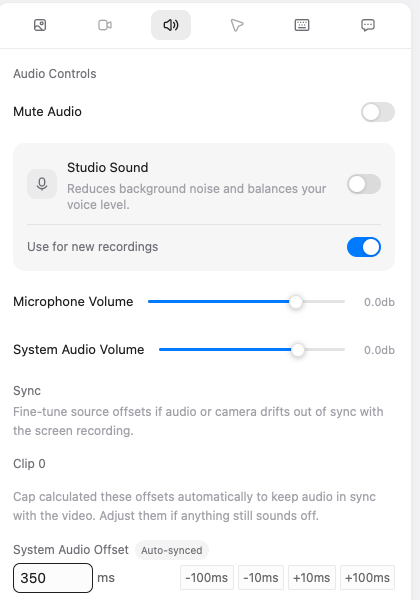

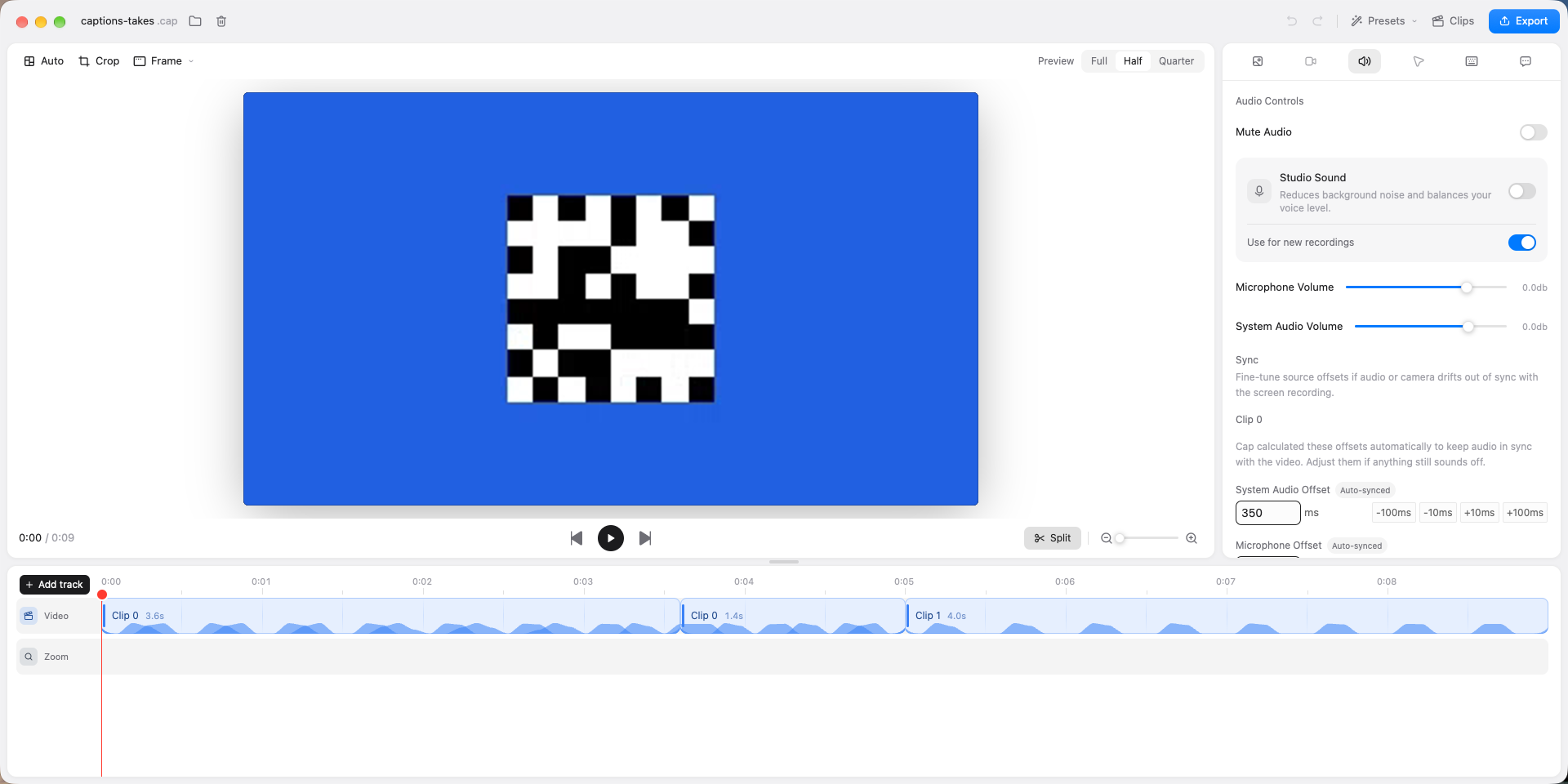

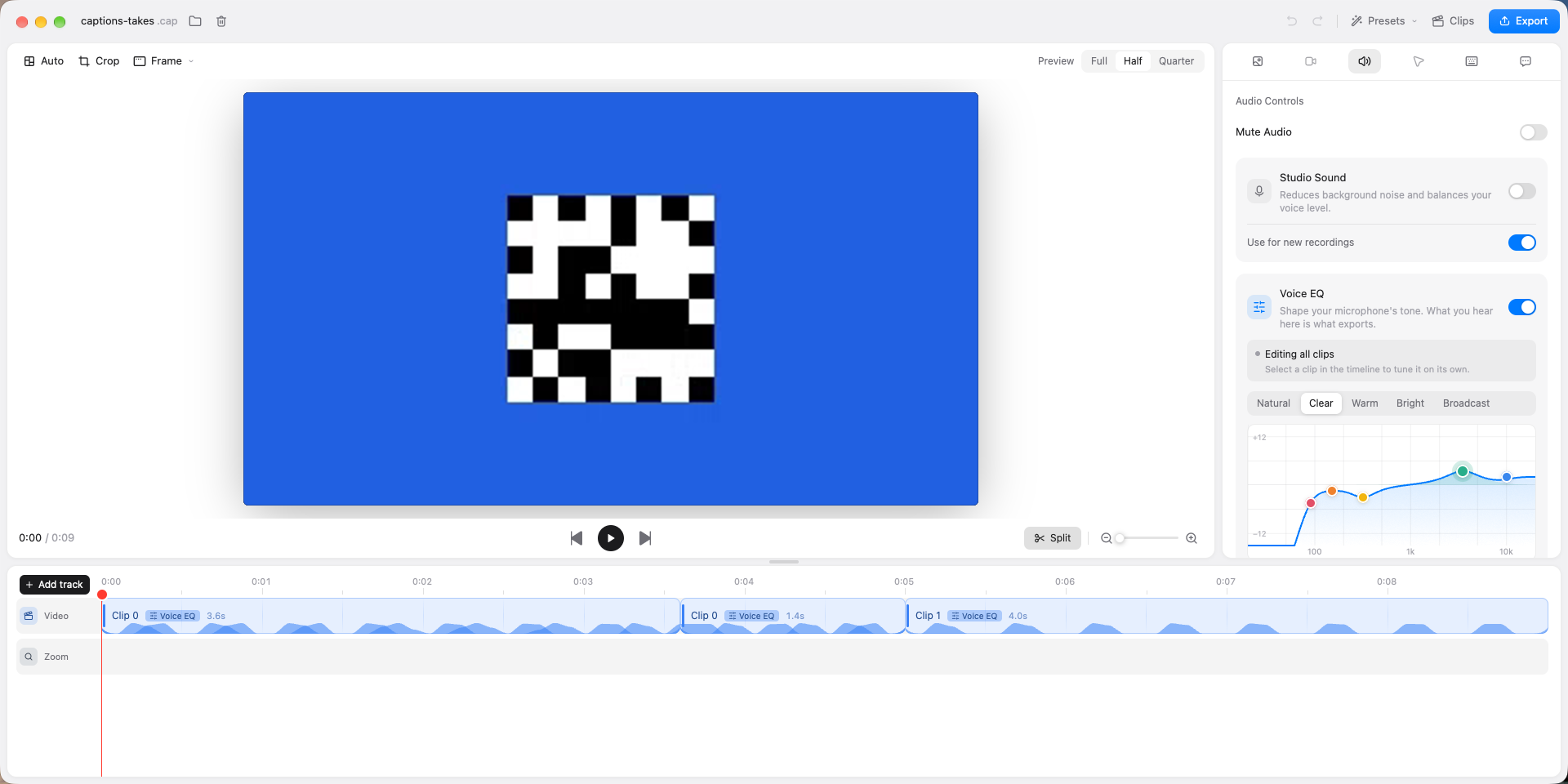

Before	After

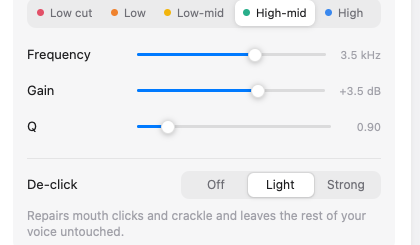

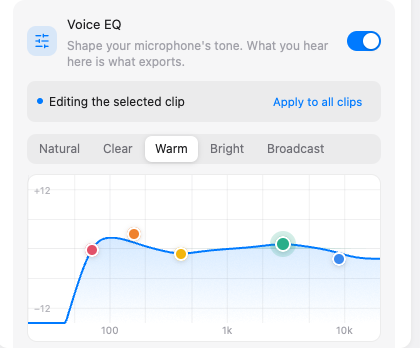

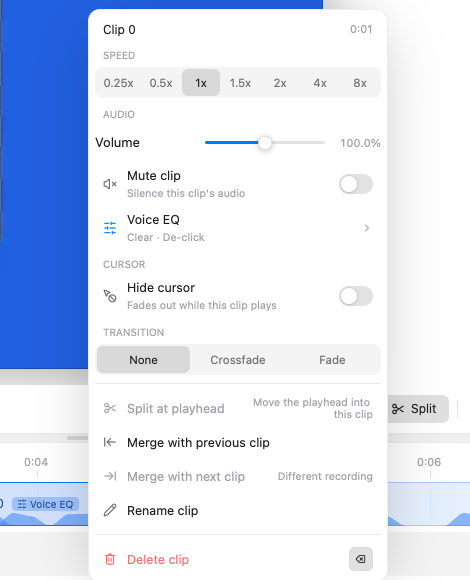

One clip on its own	Band controls and de-click	Clip menu

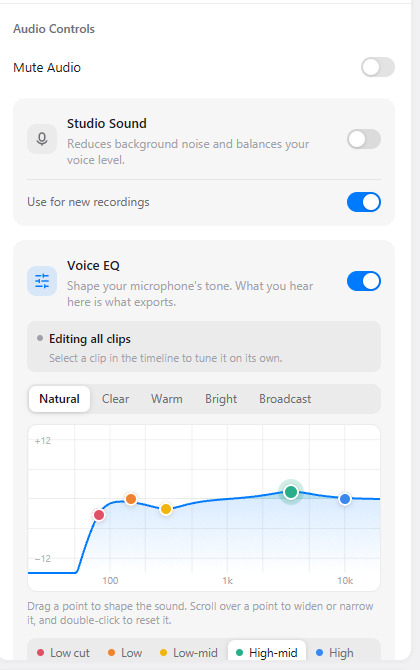

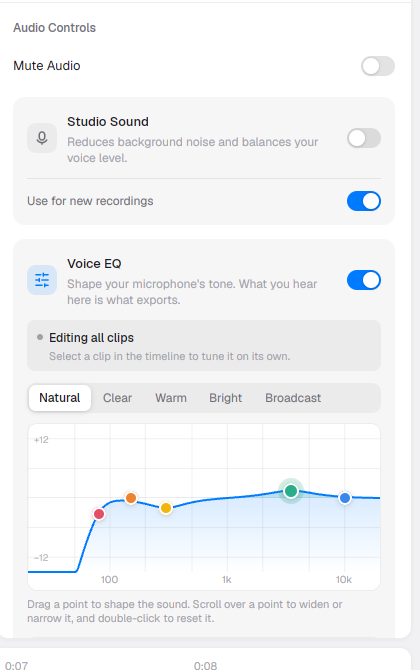

Linux	Windows

How it works

flowchart LR
    mic[Mic track] --> tone["VoiceTone<br/>EQ cascade + de-click"]
    tone --> studio["Studio Sound<br/>(if on)"]
    studio --> mix[Mixer]
    system[System audio] --> mix
    mix --> play[Preview playback]
    mix --> exp[Export]

Loading

• Per clip, stored in the project. TimelineSegment gains an optional voice_eq (crates/project/src/configuration.rs:1166), so existing projects load unchanged. VoiceEq (configuration.rs:766) holds the preset, the low cut, four bands and de-click. Turning the toggle off keeps the settings, so you can A/B. Values are sanitized and clamped on read, so a hand-edited project can't push the filters out of range.
• Engine (crates/audio/src/voice_tone.rs).
  • RBJ biquads computed in f64. The low cut is a 4th-order Butterworth.
  • Every 24,000-frame block is rendered from a fresh filter state primed over a fixed pre-roll on an absolute sample grid (voice_tone.rs:261). A sample's value therefore never depends on where playback, a seek or an export started, which is what keeps preview and export identical.
  • All sections run in one pass per sample (voice_tone.rs:240), which is bit-identical to filtering one section at a time and about 2x faster.
  • De-click detects clicks from the forward and backward prediction error of a local AR(16) model, measured against the 98th percentile nearby. Voiced speech sets the bar, so glottal pulses don't trigger it. Each detected gap is rebuilt by least-squares AR interpolation (voice_tone.rs:479).
• Wiring.
  • segment_voice_tone (crates/editor/src/audio.rs:922) turns a clip's settings into a VoiceToneSettings, or None when the result would be untouched audio. With no Voice EQ, the audio path is exactly what it was.
  • Playback runs the tone stage ahead of Studio Sound, inside the existing voice enhancement cache.
  • Export does the same per track (crates/editor/src/export_audio.rs:485), with enough lookbehind that its block edges land on the same grid.
  • Clips with Voice EQ skip the "preparing audio" fast path (preparing_audio/mixer.rs:78), because that path doesn't run the tone stage.
• UI (apps/desktop-gpui/src/editor_voice_eq.rs).
  • A card in the Audio tab with presets and a curve. Drag a point to set frequency and gain, scroll over it to change Q, and double-click to reset it.
  • Below the curve are a band picker with exact sliders and the de-click control.
  • With no clip selected, edits apply to every clip. Selecting clips scopes the edit to them, and Apply to all clips copies their settings to the rest.
  • The curve uses the engine's own response function (ToneResponse), so the plot is the filter that actually runs.
  • Clips show a "Voice EQ" badge on the timeline (editor_timeline.rs:3575). The clip menu gets a Voice EQ row with a summary such as "Clear · De-click", which opens the card scoped to that clip.
  • Strings are translated in all seven locales, and the Studio Mode docs gain a "Shape your microphone sound" section.

// project-config.json, timeline.segments[n]
"voiceEq": {
  "enabled": true, "preset": "clear",
  "highPass": true, "highPassHz": 90,
  "low":     { "hz": 150,   "gainDb": -1.5, "q": 0.7 },
  "lowMid":  { "hz": 320,   "gainDb": -3,   "q": 1.2 },
  "highMid": { "hz": 3500,  "gainDb": 3.5,  "q": 0.9 },
  "high":    { "hz": 10000, "gainDb": 2,    "q": 0.7 },
  "declick": "light"
}

Cost

Release build on an M4 Mac mini, rendering 10 minutes of synthetic voice at 48 kHz. Clips without Voice EQ cost nothing extra, because the stage isn't created.

Setting	Time for 10 min of audio	Share of one core in real time	Cold seek
EQ, mono	250 ms	0.04%	0.2 ms
EQ, stereo	505 ms	0.08%	0.4 ms
EQ + strong de-click	1.75 s	0.29%	1.5 ms

Playback renders on the existing prerender thread in cancellable chunks, not in the device callback, and export audio runs on its own worker in parallel with video.
