🎯 RD-03 Smart Presence Radar for ESPHome

Transform a cheap RD-03 radar sensor into an intelligent presence detection system with automated lighting control

📖 Overview

This project converts the basic Ai-Thinker RD-03 (24GHz mmWave radar) from a simple ON/OFF sensor into a smart presence detection system with:

• ✅ Motion-based entry detection - Triggers on actual movement, not static objects
• ✅ Intelligent timeout system - Fast exit (15s no-target) + Safety timeout (configurable)
• ✅ Multiple control modes - Auto, Manual, Force ON/OFF
• ✅ Distance tracking - Real-time target distance measurement
• ✅ Watchdog protection - Auto-recovery from radar hang
• ✅ Edge case handling - Manual override reset for false positives

Perfect for: Bathrooms, closets, storage rooms, garages - any small space (tested in 2m bathroom)

---

🎥 Demo

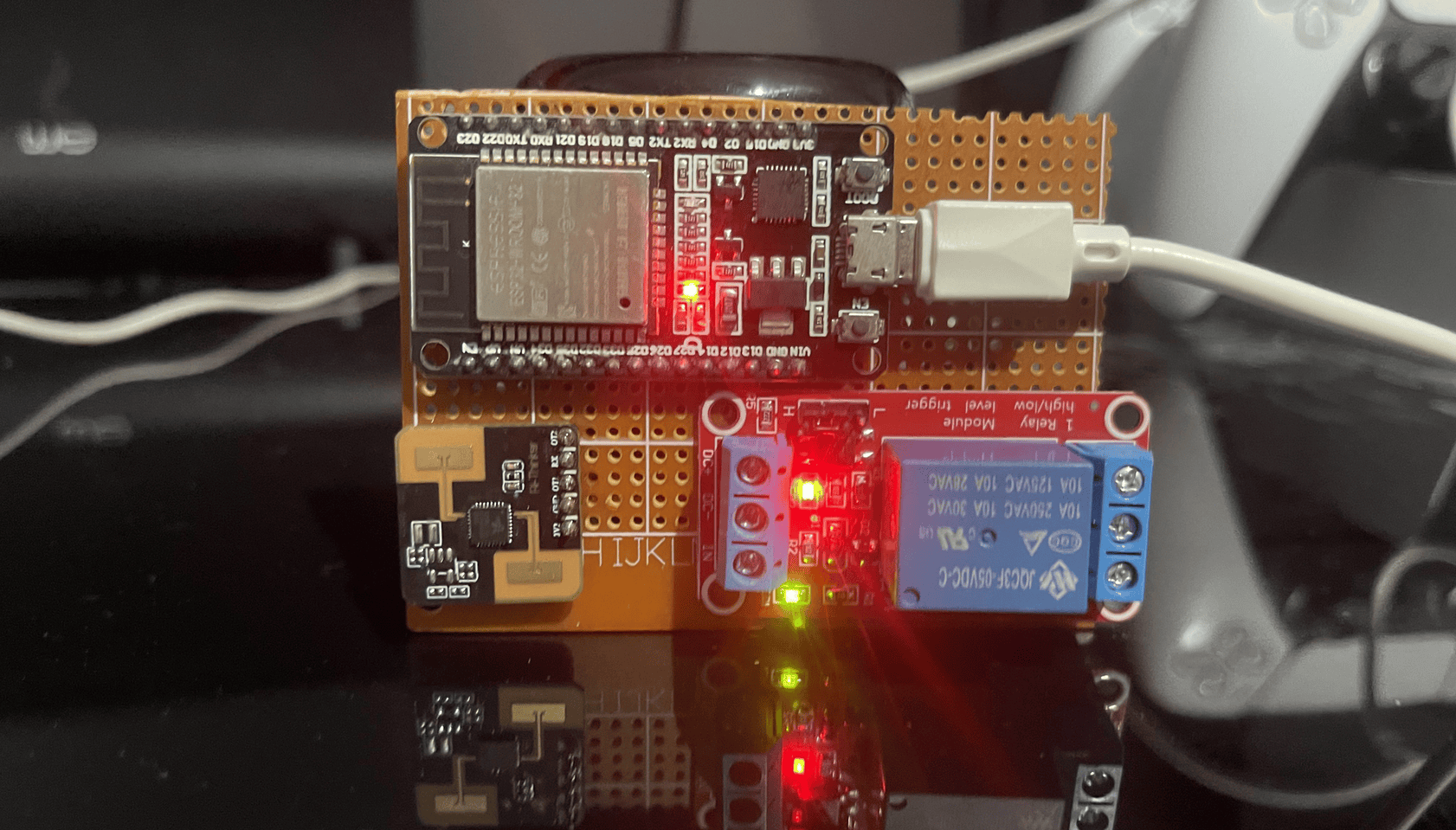

Short animated demo showing real-time entry/exit detection in the bathroom.

---

🚀 Quick Start: Pre-compiled Firmware (No Compilation Needed!)

If you don't want to install ESPHome or compile from source, download the ready-to-flash binary from the latest release!

Download & Flash

1. Go to the Releases page (choose the latest version)
2. Download the file: rd03_presence_radar_v1.0.0.bin (direct download)

Recommended Flashing Tools (Beginner-Friendly)

• ESPHome Flasher (Windows/Mac/Linux – easiest for most users):
  Download from: https://github.com/esphome/esphome-flasher/releases

  • Connect your ESP32 via USB
  • Select the .bin file
  • Choose the correct COM port
  • Click Flash → Done in ~30 seconds!

• Web Installer (Browser-based, no software install – if your browser supports Web Serial):
  Use ESP Web Tools: https://esphome.github.io/esp-web-tools/
  (Note: For ESP32, you may need to merge binaries first if using advanced features – stick to ESPHome Flasher for simplicity.)

• Command Line (Advanced users):

  # Install esptool if needed
  pip install esptool

  # First time? Erase flash (recommended)
  esptool.py --port COMX erase_flash   # Replace COMX with your port (e.g. COM3 or /dev/ttyUSB0)

  # Flash the binary
  esptool.py --port COMX --baud 460800 write_flash 0x0 rd03_presence_radar_v1.0.0.bin


Important Notes:

First flash on a new ESP32? Always erase flash first to avoid issues. After flashing, the device will create its own Wi-Fi AP (RD03-XXXX) for initial setup if not pre-configured. WiFi credentials are hardcoded in this binary – edit the YAML and re-compile for custom SSID/password in future updates. Check the release notes for any specific instructions or known issues.

This makes trying the project super easy – just flash and add to Home Assistant!

🛠️ Hardware Requirements

Required Components

Component	Specification	Price (approx)
Radar Sensor	Ai-Thinker RD-03 (24GHz mmWave)	$3-5
Microcontroller	ESP32-DevKit or similar	$4-6
Relay Module	1-channel 5V relay	$1-2
Power Supply	5V/2A USB adapter	$2-3
Optional	Wall switch (manual override)	$1-2

Total Cost: ~$15-20 (vs $50+ commercial solutions) Total power consumption: ~0.5–1W (very low, suitable for 24/7 operation)

Wiring Diagram

ESP32          RD-03 Radar       Relay          Light
-----          -----------       -----          -----
GPIO17 ────── TX
GPIO16 ────── RX
GPIO19 ──────────────────────── IN  ────────── Load
GPIO18 ────── Wall Switch (optional)
GND    ────── GND ──────────────GND
5V     ────── VCC ──────────────VCC

---

📦 Installation

Method 1: ESPHome Dashboard (Recommended)

1. Copy the configuration:

   # Download the latest config
   wget https://raw.githubusercontent.com/gomgom-40/RD-03_presence_radar/main/bathroom_radar_production.yaml

2. Update WiFi credentials:

   wifi:
     ssid: "YOUR_WIFI_SSID"
     password: "YOUR_WIFI_PASSWORD"

3. Flash to ESP32:

   • Open ESPHome Dashboard
   • Create new device
   • Paste configuration
   • Click "Install" → "Plug into this computer"

Method 2: Command Line

# Install ESPHome
pip3 install esphome

# Compile and upload
esphome run bathroom_radar_production.yaml

Arduino IDE

1. Open Arduino IDE
2. Go to Sketch → Include Library → Manage Libraries
3. Search for "RD03Radar"
4. Click Install
5. Done! ✅

Manual Installation

Download the latest release from GitHub Releases

PlatformIO

lib_deps =
    gomgom-40/RD03Radar@^1.0.0

🎓 Quick Start

#include

RD03Radar radar(RX_PIN, TX_PIN);

void setup() {
  Serial.begin(115200);
  radar.begin();
}

void loop() {
  if (radar.targetDetected()) {
    Serial.println("Presence detected!");
    float distance = radar.getDistance();
    Serial.print("Distance: ");
    Serial.print(distance);
    Serial.println(" cm");
  }
  delay(100);
}

---

⚙️ Configuration

Adjustable Parameters

All settings are exposed to Home Assistant and can be changed without reflashing:

Parameter	Default	Range	Description
Minimum Range	20 cm	10-300 cm	Ignore objects closer than this
Maximum Range	500 cm	50-600 cm	Ignore objects farther than this
Activity Level	3	1-5	Hold time multiplier (1=sensitive, 5=relaxed)
Max Absence Time	5 min	1-120 min	Safety timeout for auto-off

How It Works

1. Entry Detection (Motion-based)

# Requires actual movement to trigger
Threshold: ≥2cm distance change
Hits required: 1 (immediate response)
Result: Light turns ON

2. Presence Maintenance

# Any valid radar reading extends the timer
Valid range: 20-500 cm (configurable)
Activity timer: Resets on each detection
Hold time: Activity_Level × 10 seconds

3. Exit Detection (Two-tier system)

# Fast Exit (15 seconds)
Trigger: No target detected for 15s
Action: Turn OFF immediately

# Safety Timeout (5 minutes default)
Trigger: No activity for Max_Absence_Time
Action: Force OFF (emergency backup)

---

🎛️ Control Modes

1. Automatic Mode (Default)

• Radar controls the light automatically
• Motion triggers ON
• No-target triggers OFF (15s delay)

2. Manual Mode (Wall Switch)

• Physical switch connected to GPIO18
• Overrides all automation
• Light stays ON until switch is turned OFF

3. Force ON (Home Assistant)

• Overrides radar and wall switch
• Light stays ON indefinitely
• Useful for cleaning/maintenance

4. Force OFF (Home Assistant)

• Overrides everything
• Light stays OFF
• Useful for energy saving

---

🐛 Troubleshooting

Light doesn't turn on

Check:

1. Is radar receiving power? (Red LED on RD-03)
2. Are UART connections correct? (TX↔RX crossed)
3. Check ESPHome logs: esphome logs bathroom_radar.yaml
4. Verify distance readings appear in Home Assistant

False triggers (ghost presence)

Solution:

• This is a rare edge case (2 occurrences in 3 weeks)
• Already handled by manual_off_recent reset logic
• If persistent: Reduce Maximum Range from 500→250 cm

Light turns off while occupied

Fixes:

1. Increase Activity Level from 3→4 or 5
2. Check if person is in Min/Max range (adjust if needed)
3. Verify radar has clear line-of-sight (no obstructions)

Radar stops responding

Auto-recovery enabled:

• Watchdog resets radar after 90s silence
• ESP restarts after 12h complete silence
• Check Diagnostics sensor for status

---

📊 Sensors Exposed

Home Assistant Entities

# Binary Sensors
binary_sensor.smart_presence           # Main presence state
binary_sensor.wall_switch_manual       # Physical switch state

# Sensors
sensor.target_distance                 # Real-time distance (cm)

# Text Sensors
sensor.last_presence_timestamp         # When was last detection
sensor.diagnostics                     # System health status

# Switches
switch.bathroom_light_force_on         # Override to ON
switch.bathroom_light_force_off        # Override to OFF
switch.bathroom_light                  # Main relay (نور الحمام)

# Number Inputs
number.minimum_range                   # Min detection range
number.maximum_range                   # Max detection range
number.activity_level                  # Sensitivity (1-5)
number.maximum_absence_time            # Safety timeout (min)

---

🔬 Technical Details

Algorithm Overview

// Entry Detection (presence_active == false)
1. Extract distance from UART "Range XXX" message
2. Validate: within min_range to max_range
3. Detect motion: distance changed ≥2cm from last reading
4. Trigger: 1 motion hit = presence activated

// Maintenance Mode (presence_active == true)
1. Any valid reading → reset activity timer
2. Invalid/no reading → start no_target_since timer
3. Continue until Fast Exit or Safety timeout

// Exit Detection
Fast Exit: no_target_since > 15 seconds → OFF
Safety: last_activity > max_absence_time → OFF

Edge Cases Handled

1. Manual Override Reset - Prevents false re-trigger after manual turn-off
2. Invalid Jump Protection - Ignores jumps from >100cm to <10cm
3. Stale Data Clearing - UART buffer auto-clears after 30s inactivity
4. Watchdog Recovery - Auto-resets radar on communication failure

---

🤝 Contributing

Contributions are welcome! Here's how:

1. Fork the repository
2. Create a feature branch (git checkout -b feature/amazing-feature)
3. Commit your changes (git commit -m 'Add amazing feature')
4. Push to the branch (git push origin feature/amazing-feature)
5. Open a Pull Request

Development Guidelines

• Keep changes minimal and focused
• Preserve tested logic (3+ weeks bathroom testing)
• Add comments for complex sections
• Test in real hardware before submitting

---

📜 License

This project is licensed under the MIT License - see LICENSE file for details.

---

🙏 Acknowledgments

• ESPHome Team - For the amazing platform
• Ai-Thinker - For the affordable RD-03 radar hardware
• Home Assistant Community - For inspiration and support
• Egyptian Engineering - For turning cheap hardware into smart solutions 🇪🇬

---
